In fluorescence-guided surgery and NIR imaging, cameras and imaging systems are constantly pushed to perform at their limits. The ability to make accurate, quantitative decisions—such as calculating a tumor-to-background ratio (TBR) or signal homogeneity —depends entirely on the consistency of the image data. This is where fluorescence uniformity targets become indispensable.
The Problem: Non-Uniform Illumination
A major challenge for any wide-field imaging system is achieving perfectly uniform illumination across the entire field of view (FOV). Variations in light intensity are inherent due to factors like:
-
- Lens fall-off: Light intensity naturally diminishes toward the edges of the lens aperture.
-
- LED/Laser Beam Profile: Most light sources do not produce a perfectly flat light field; they have hot spots or intensity variations.
-
- System Assembly: Minor misalignments in optics or filters can introduce streaks or shadows.
If a system is non-uniform, a true biological signal at the edge of the image might be incorrectly measured as weaker than an identical signal at the center. This directly impacts the accuracy of critical quantitative metrics like TBR, leading to unreliable clinical decisions.
The Solution: The Uniformity Target
A uniformity target is a calibrated reference object that emits or reflects a known, stable signal across its entire surface. When an imaging system is focused on this target, any measured variation in intensity across the image plane is definitively attributed to the imaging system itself—not the target.
1. Flat-Field Correction
The primary use of a uniformity target is for flat-field correction (FFC). By capturing an image of the uniform target, engineers can create a compensation map (or calibration matrix). The camera software then uses this map to mathematically boost the signal in dim areas and reduce the signal in bright areas, effectively leveling the playing field across the entire image.

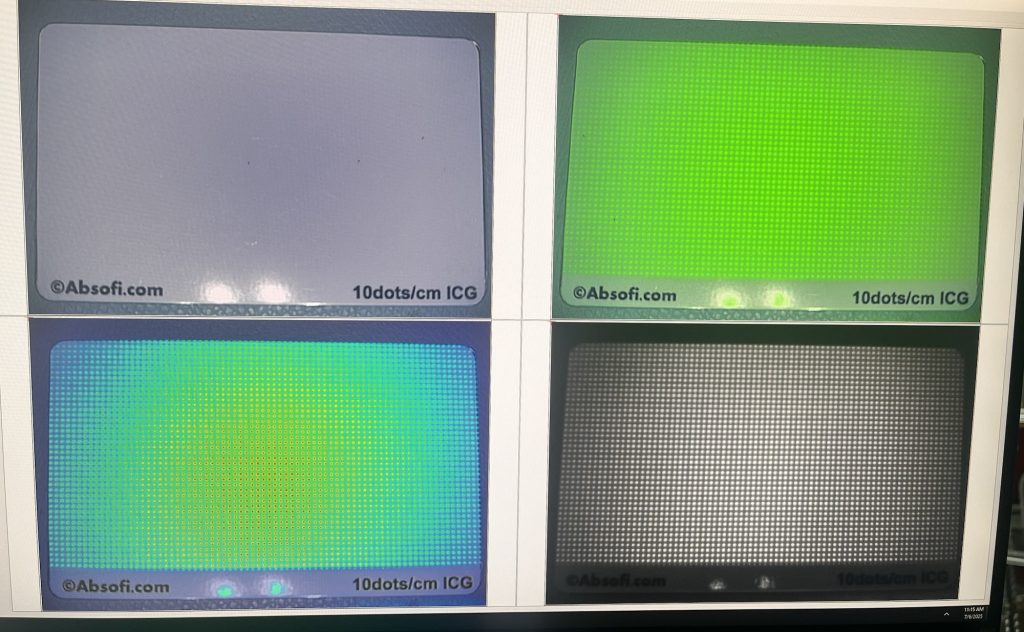

2. Dot Array Targets for High Resolution Calibration

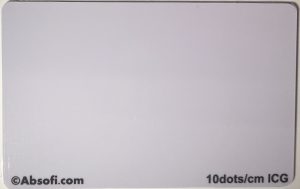

For high-precision systems, a simple uniform square is not enough. Dot array targets (or grid patterns) provide a highly precise spatial sampling array.

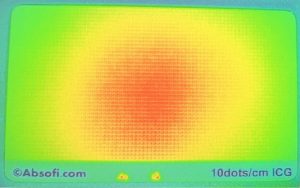

By measuring the signal from individual dots distributed uniformly across the FOV, a more complex and accurate spatial correction can be generated. These targets ensure that the compensation map is fine-tuned to account for subtle, localized non-uniformities introduced by the optical components.
Conclusion
For NIR cameras, validation via uniformity targets are not just a quality control step; they are a necessity for precise imaging. They transform raw, potentially misleading optical data into reliable, quantitative information, ensuring that clinicians can trust the numbers they see—regardless of where in the field of view they are focused. This validation is critical for clinical trials, regulatory submissions, and ultimately, ensuring consistent patient safety.
